Luowave X410 PRO/PRO+ | 1 MHz-7.2 GHz RF SDR, 400MHz bandwidth/ch, 4 Channel, Xilinx RFSoC XCZU48DR FPGA, Phase-Coherent < 1° RMS, USRP Software Defined Radio Device

Name: Luowave X410 PRO/PRO+ | 1 MHz-7.2 GHz RF SDR, 400MHz bandwidth/ch, 4 Channel, Xilinx RFSoC XCZU48DR FPGA, Phase-Coherent < 1° RMS, USRP Software Defined Radio Device
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: Luowave X410 PRO/PRO+
Price: 16.00 USD
Availability: InStock

Nombre De La Marca:	Luowave
Número De Modelo:	Luowave X410 PRO/PRO+
Cuota De Producción:	1
Precio:	$32,570.00 – $35,000.00

Información detallada

Descripción del producto

Información detallada

Place of Origin:

China

Documento:

USRP-LW X410 Datasheet.pdf

Channel:

4 RX, 4 TX in half-wide RU form factor

Frequency Range:

1 MHz to 7.2 GHz frequency range (tunable up to 8GHz)

Bandwidth:

Up to 400 MHz of instantaneous bandwidth per channel

Connector:

Two QSFP28 ports (10 Gigabit Ethernet, 100 Gigabit Ethernet, Aurora) ，One PCIe Gen3 x 8 Interfaces ，RJ45 (1 GbE)

FPGA:

Xilinx Zynq UltraScale+ ZU48DR RFSoC

Compatibility:

Open source (GNU Radio, RFNoC, UHD)

Descripción del producto

Luowave X410 PRO/PRO+ | 1 MHz-7.2 GHz RF SDR, 400MHz bandwidth/ch, 4 Channel, Xilinx RFSoC XCZU48DR FPGA, Phase-Coherent < 1° RMS, USRP Software Defined Radio Device

Luowave X410 PRO/PRO+ is a new-generation four-channel software-defined radio (SDR) platform developed by Wuhan Luoguang Electronics, based on Xilinx Zynq UltraScale+ RFSoC with an integrated quad-core ARM processor and 12-bit ADC/14-bit DAC.

This device features a wide frequency coverage of 1MHz–7.2GHz (expandable to 8GHz) and adopts a dual-conversion superheterodyne architecture, providing four independent transceiver channels, each supporting 400MHz instantaneous bandwidth.Compatible with LabVIEW, GNU Radio, and other development environments, the Luowave X410 PRO/PRO+ stands out with its wide frequency range, large bandwidth, multi-channel capability, and high integration, making it an ideal R&D platform for wireless communications, radar, electronic warfare, and other fields.

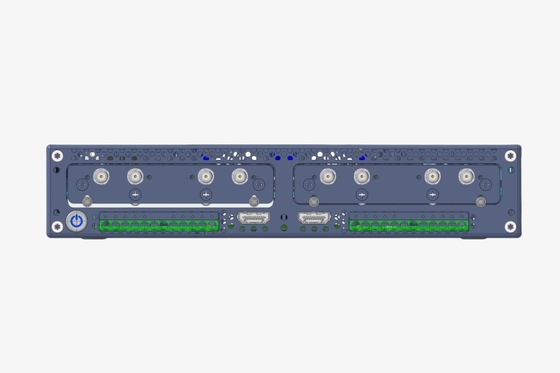

Luowave X410 PRO/PRO+ | 1 MHz-7.2 GHz RF SDR, 400MHz bandwidth/ch, 4 Channel, Xilinx RFSoC XCZU48DR FPGA, Phase-Coherent < 1° RMS, USRP Software Defined Radio Device 0

Block Diagram

Luowave X410 PRO/PRO+ | 1 MHz-7.2 GHz RF SDR, 400MHz bandwidth/ch, 4 Channel, Xilinx RFSoC XCZU48DR FPGA, Phase-Coherent < 1° RMS, USRP Software Defined Radio Device 1

Xilinx Zynq UltraScale+ ZU28DR RFSoC FPGA

The ZU48DR RFSoC offers doubled FPGA resources, higher channel capacity, and superior phase coherence compared to ZU28DR, enabling cutting-edge wideband and multi-antenna applications.

Software Supported

USRP-LW Software Defined Radio Family

Luowave X410 PRO/PRO+ | 1 MHz-7.2 GHz RF SDR, 400MHz bandwidth/ch, 4 Channel, Xilinx RFSoC XCZU48DR FPGA, Phase-Coherent < 1° RMS, USRP Software Defined Radio Device 4
