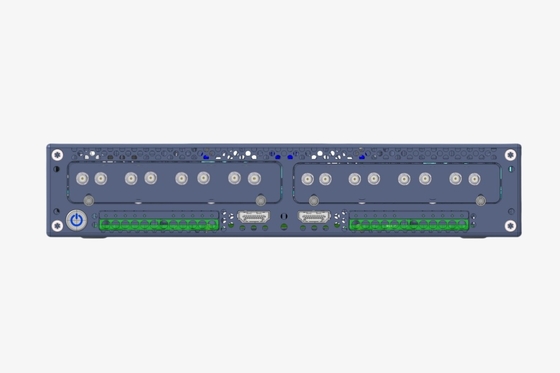

Luowave X440 PRO | 1 MHz-7.2 GHz RF SDR, 400MHz bandwidth/ch, 4 Channel, Xilinx RFSoC XCZU48DR FPGA, Phase-Coherent < 1° RMS, USRP Software Defined Radio Device

Name: Luowave X440 PRO | 1 MHz-7.2 GHz RF SDR, 400MHz bandwidth/ch, 4 Channel, Xilinx RFSoC XCZU48DR FPGA, Phase-Coherent < 1° RMS, USRP Software Defined Radio Device
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: Luowave X440 PRO
Price: 13.00 USD
Availability: InStock

Nombre De La Marca:	Luowave
Número De Modelo:	Luowave X440 PRO
Cuota De Producción:	1
Precio:	$26,000.00

Información detallada

Descripción del producto

Información detallada

Place of Origin:

China

Channel:

8 TX/RX Channel

Frequency Range:

30 MHz – 4 GHz Frequency Range

Bandwidth:

Bandwidth up to 1.6 GHz/channel

Connector:

Dual 100 GEth via QSFP28

Phase Synchronization:

Phase Stability (within device): < 1° ，RMS Phase Stability (device-to-device): < 2° RMS

FPGA:

Xilinx Zynq UltraScale+ ZU48DR RFSoC

Function:

Open source (GNU Radio, RFNoC, UHD)

Descripción del producto

Luowave X440 PRO | 1 MHz-7.2 GHz RF SDR, 400MHz bandwidth/ch, 4 Channel, Xilinx RFSoC XCZU48DR FPGA, Phase-Coherent < 1° RMS, USRP Software Defined Radio Device

Luowave X440 PRO is a high-performance software-defined radio (SDR) device based on a direct RF sampling architecture, featuring 8 transmit and 8 receive channels. It supports an intermediate frequency (IF) range of 30MHz to 4GHz, delivering a maximum bandwidth of 1.6GHz in single/dual-channel mode, while maintaining 400MHz per channel in 8-channel mode. Equipped with 12-bit ADC and 14-bit DAC, it achieves a sampling rate of up to 4GSps.

Powered by Xilinx Zynq UltraScale+ RFSoC FPGA and a quad-core ARM processor, the device offers exceptional real-time signal processing capabilities. Its outstanding phase coherence ensures <1° RMS phase stability across internal channels and <2° RMS between multiple units, making it an ideal solution for demanding applications such as MIMO systems, beamforming, and high-precision direction finding.

Luowave X440 PRO | 1 MHz-7.2 GHz RF SDR, 400MHz bandwidth/ch, 4 Channel, Xilinx RFSoC XCZU48DR FPGA, Phase-Coherent < 1° RMS, USRP Software Defined Radio Device 0

Block Diagram

Xilinx Zynq UltraScale+ ZU28DR RFSoC FPGA

The ZU48DR RFSoC offers doubled FPGA resources, higher channel capacity, and superior phase coherence compared to ZU28DR, enabling cutting-edge wideband and multi-antenna applications.

Ultra-low Phase Noise

Its outstanding phase coherence ensures <1° RMS phase stability across internal channels and <2° RMS between multiple units, making it an ideal solution for demanding applications such as MIMO systems, beamforming, and high-precision direction finding.

Software Supported

USRP-LW Software Defined Radio Family

Luowave X440 PRO | 1 MHz-7.2 GHz RF SDR, 400MHz bandwidth/ch, 4 Channel, Xilinx RFSoC XCZU48DR FPGA, Phase-Coherent < 1° RMS, USRP Software Defined Radio Device 5
